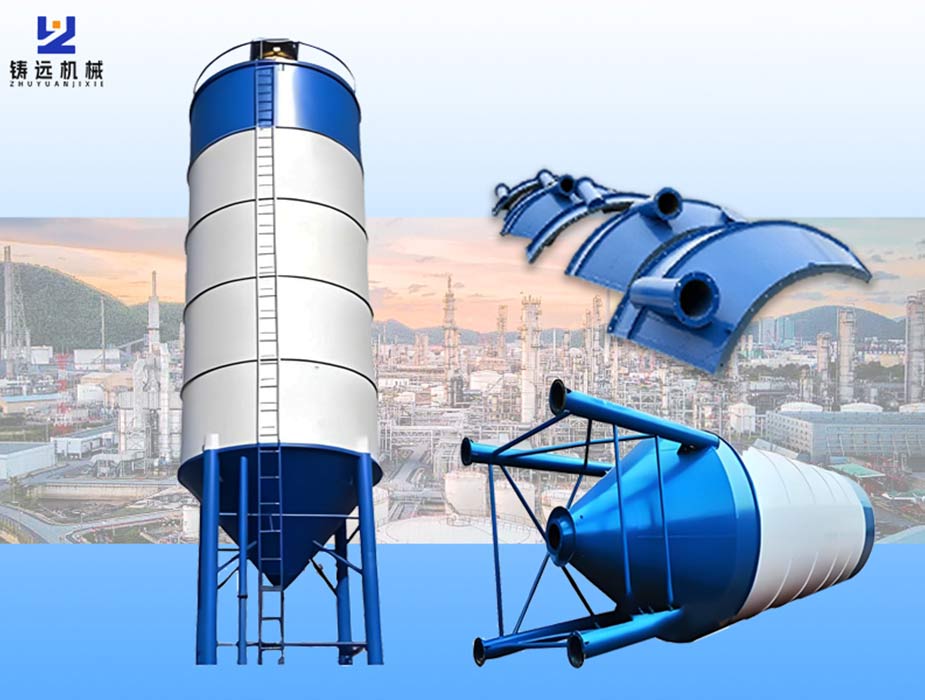

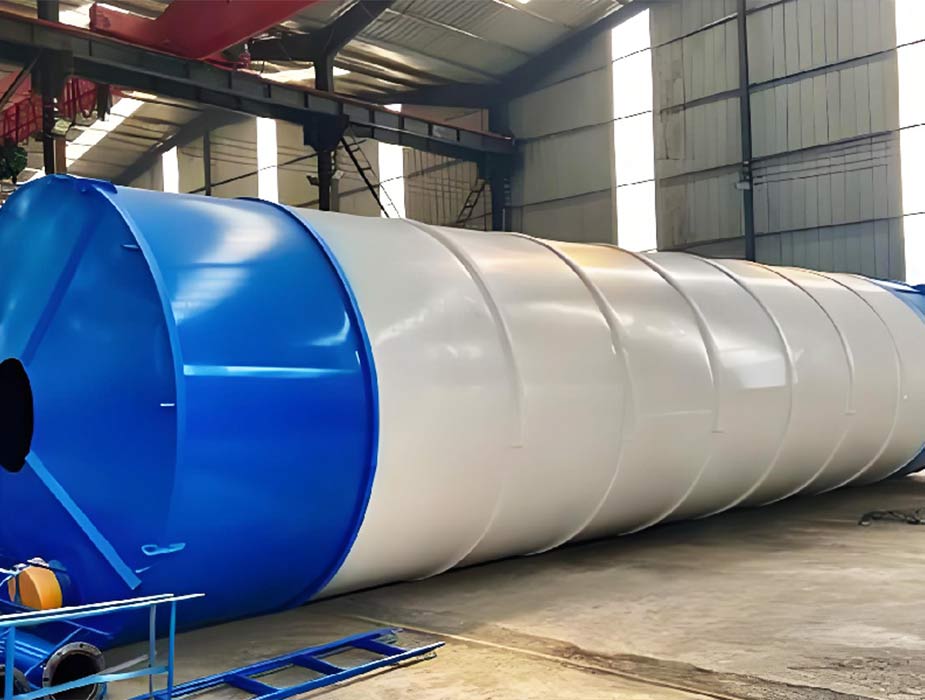

Bolted Cement Silo

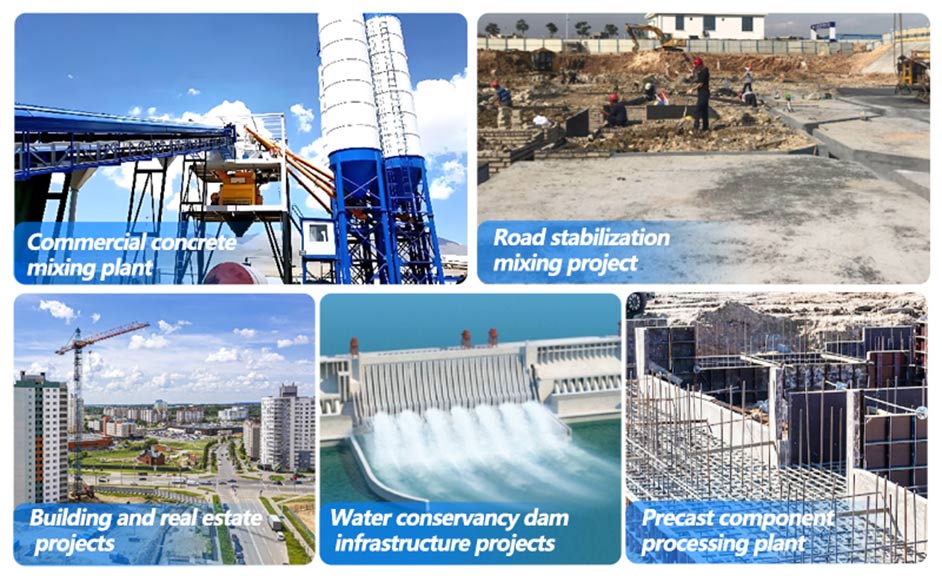

  The vertical cement silo (also known as a vertical cement tank) is a sealed, vertical steel storage unit for powdered materials—designed for use with concrete mixing plants—specifically intended for storing dry bulk materials such as cement, fly ash, and mineral powder.

  Bulk cement tanker trucks use pneumatic conveyance to feed powdered material into the silo through an inlet pipe, while a dust collector simultaneously filters out dust. During production, the bottom valve is opened, allowing the material to descend under gravity and be transported to the mixing equipment by a screw conveyor; a level indicator monitors stock levels in real time, and an arch-breaking device ensures smooth material discharge.

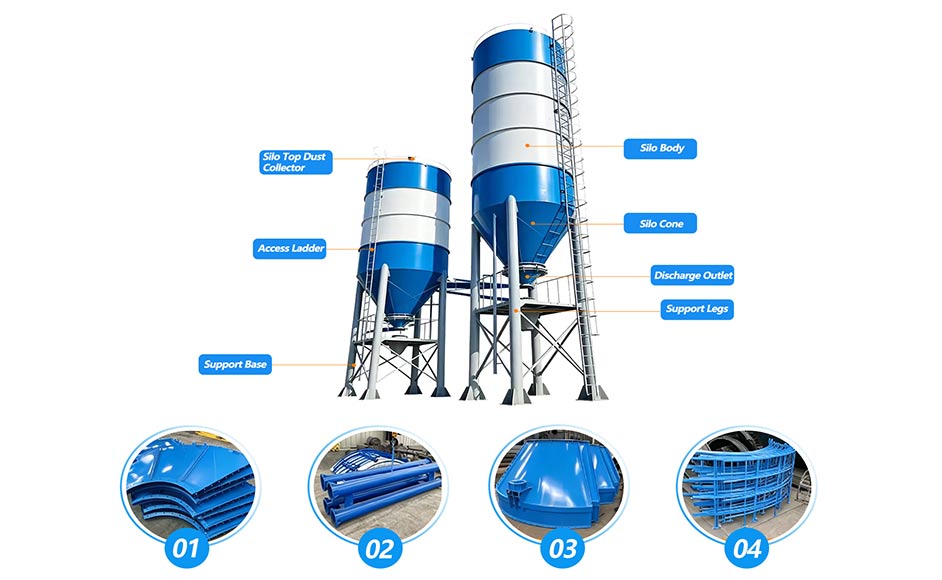

Features-Vertical Cement Silo

• Silo body: Formed by rolling and welding Q235 steel plate, reinforced with spiral lock-seaming; offers excellent sealing, moisture resistance, and rust protection.
• Support System: Integrated reinforced support system, offering dual assurance for wind resistance and load-bearing capacity.
• Silo top assembly: Dust collector to handle dust generated during continuous feeding; pressure safety valve for overpressure relief and explosion protection.
• Bottom discharge components: Fluidizing air pad / pneumatic arch-breaking device, discharge butterfly valve, discharge outlet.
